Brand Name : Senphus
Model Number : SC/RC Extension
Certification : SGS, ISO9001
Place of Origin : Jiangsu, China
MOQ : 5kg
Payment Terms : T/T, D/P
Supply Ability : 30 tons per day
Delivery Time : 3 days
Packaging Details : Packed with waterproof paper or weave bag, into pallets or wooden case. Special packaging requirements can also be accommodated.
Product Name : NiCr-NiSi(Type K) Thermocouple Wire
KP Material : 90% Ni; 10% Cr
KN Material : 97% Ni; 3% Si
Application : The Most Commonly Used Temperature Detection Element In Industry
SC/RC Thermocouple Extension Wire for Long-Distance Temperature Measurement in Industrial Settings
SC/RC refers to Special Calibration (SC) and Reference Calibration (RC) thermocouple wire, which are used for extension and compensation in temperature measurement systems. These types of wires are specifically designed to be used with thermocouples, such as Type S (Platinum-Rhodium) and Type R (Platinum-Rhodium), in order to maintain accurate and consistent temperature measurements over longer distances or in environments where the thermocouple itself cannot be directly connected to the measurement equipment.
SC/RC Thermocouple Extension and Compensating Wires are essential components in ensuring accurate and stable temperature measurements over long distances or in environments with challenging conditions. Their primary features include:Accurate calibration to match the thermoelectric properties of high-precision thermocouples (e.g., Type S or Type R).Wide temperature range matching the corresponding thermocouple.High durability, resistance to oxidation and corrosion, and reliable performance under harsh industrial conditions.Flexible and easy integration into temperature monitoring and measurement systems.
These wires are widely used in industries requiring high-precision temperature control, such as in aerospace, semiconductor manufacturing, research, and metrology labs.
Thermocouple temperature range and tolerance
Themcouple No. indexing | Compensation wire type | Usag classification |
Measuring junction temperature/ ℃ |
Standardc EMF value/μV | Presion grade | General grade | ||
Tolerance/μV | Thermal EMF range/μV | Tolerance/μV | Thermal EMF range/μV | |||||
S | SC OR RC | G | 100 | 646 | ±30 | 616~676 | ±60 | 586~706 |
H | 100 | 646 | ----- | ----- | ±60 | 586~706 | ||
200 | 11441 | ----- | ----- | 1381~1501 |
Compensating Wire Reciprocating Resistance
Compensation wire type | Reciprocating Resistance (Ω/m20℃ less than) | ||||
0.2mm² | 0.5mm² | 1.0mm² | 1.5mm² | 2.5mm² | |
SC/RC | 0.25 | 0.1 | 0.05 | 0.03 | 0.02 |
Material Composition:
Thermocouple Calibration:
Temperature Range:
Accuracy and Stability:
Durability:
Flexibility and Application:
Temperature Extension:
Temperature Compensation:
High-Precision Applications:
Laboratories and Calibration:
![]() |

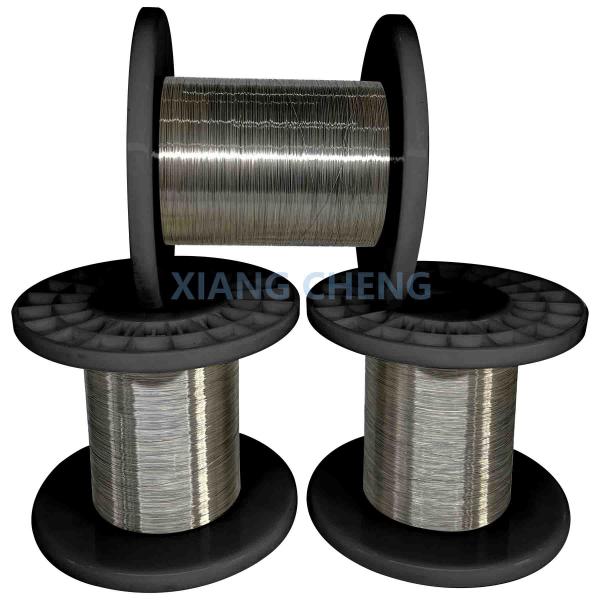

SC/RC Thermocouple Extension Wire for Long-Distance Temperature Measurement in Industrial Settings Images |
